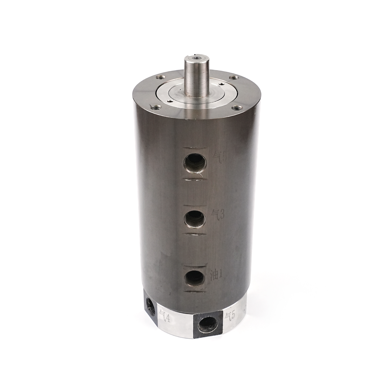

Copper Slip Ring

Copper Slip Ring is an electrical connection component used to realize current and signal transmission between the static part and the dynamic part in the rotating structure. Its core function is to maintain continuous conduction in the rotating equipment to avoid interruption of power supply or signal due to cable entanglement. Copper Slip Rings are widely used in various devices that require 360-degree continuous rotation and electrical connection, such as rotating machinery, automation equipment, wind power generation systems, medical imaging equipment, etc.

The basic structure of the Copper Slip Ring consists of a fixed brush assembly (usually a carbon brush or a metal brush) and a rotatable copper ring. The rotating part realizes the transmission of current or signal by sliding contact with the fixed brush.

Material:

Copper conductive ring: high-purity oxygen-free copper or phosphorus deoxidized copper, with excellent conductivity and corrosion resistance. In order to extend life and reduce resistance, the surface of the copper ring is usually silver-plated, gold-plated or tin-plated.

Brush (electric brush): Graphite, silver graphite or metal wire can be selected according to different uses. Graphite brushes are more wear-resistant and suitable for long-term operation; silver graphite is suitable for signal transmission and has lower resistance.

Insulation materials: epoxy resin, polytetrafluoroethylene, etc., used to separate channels and prevent short circuits.

Shell material: generally engineering plastics or metal shells, such as aluminum alloy, stainless steel, etc., to adapt to different industrial environments.

Bearing part: high-precision ball bearings are mostly used to ensure the smooth rotation of the slip ring.

Uses:

Automation equipment: in rotating tables, packaging machines, filling machines and other equipment, to transmit power and control signals.

Wind power system: used for blade adjustment and yaw system power transmission in wind turbines.

Medical equipment: used for continuous electrical signal transmission in CT scanners and rotating X-ray machines.

Robots: Transmit control signals and drive power in mechanical arms and rotating joints.

Stage lighting: used for power supply and DMX signal transmission in 360° rotating lamps.

Radar antennas, rotating cameras: to ensure continuous power supply and signal feedback.

Features:

Excellent conductivity: High-purity copper or its plating material is used, with strong conductivity and low resistance.

Diverse structural designs: Supports hollow shaft type, cap type, split type and other structures, which can be flexibly applied to different equipment.

High adaptability: Supports simultaneous transmission of power, analog signals, digital signals, and industrial buses.

Moderate service life: Depending on the working environment and load, the service life is usually between 2 million and 10 million revolutions.

Convenient maintenance: The structure is simple, the brushes and conductive rings are easy to replace, and the maintenance cycle is long.

Economical and practical: Compared with fiber Slip Rings and gold slip rings, it has a higher cost-effectiveness and is suitable for large-scale industrial use.

Advantages:

Moderate price and high cost-effectiveness: low copper cost, simple structure, and mature manufacturing process.

Stable and reliable electrical connection: The conductive ring is matched with the brush, the transmission is stable, and the voltage fluctuation is small.

Support high current transmission: Copper itself has strong conductivity and can withstand large current output.

Applicable to various environments: Sealed or anti-corrosion materials can be selected according to environmental conditions, and it can adapt to complex places such as high humidity and high dust.

Flexible customization of the number of channels: from 1 to dozens or hundreds of power/signal channels, supporting modular design.

Easy to integrate and install: various sizes, support OEM/ODM customization, and convenient matching with customer equipment.

FAQ:

What types of signals can Copper Slip Ring transmit?

Copper slip rings can transmit a variety of signals, including analog signals, digital signals, industrial bus signals (such as RS485, CAN, PROFIBUS, Ethernet), etc. In order to avoid interference, the signal channel and the power channel will be electromagnetically isolated and shielded.

Is the copper slip ring reliable under high-speed rotation?

Ordinary copper slip rings are suitable for medium and low speed occasions (300~2000 RPM). If they are used for high-speed rotation (such as ≥6000 RPM), special design is required, including optimizing brush material, reducing friction coefficient, enhancing heat dissipation and using high-precision bearings. Otherwise, problems such as temperature rise and signal loss may occur.

How long is the life of a copper slip ring?

The service life of a copper slip ring is related to the speed, load, current, brush type and working environment. Generally, it can reach 2 million to 10 million revolutions under normal working conditions. Regular maintenance, brush replacement and proper lubrication can extend the service life.

Can copper slip rings be used in outdoor environments?

Yes. To adapt to outdoor or humid, dusty and corrosive environments, copper slip rings with high protection levels (such as IP65 or above), sealed housings and anti-corrosion surface treatments (such as spraying epoxy resin or nickel plating) should be selected. In addition, it should have good heat dissipation and moisture removal functions.

Will copper slip rings generate electromagnetic interference when used?

In high-frequency or multi-signal channel transmission, copper slip rings may become a source of interference if shielding and grounding measures are not taken. Solutions include using shielded wires, using independent isolation signal channels, optimizing brush ring contact structures, and adding EMI filters during design.
